Pure Copper Materials
High-conductivity pure copper materials (C11000/C10200) engineered for electrical applications requiring maximum conductivity. Unlike brass alloys optimized for machining, our pure copper delivers and for critical electrical components.
Compare Copper Alloys
Explore our complete copper alloy range to find the optimal material for your specific application requirements.
Why Choose Pure Copper Over Brass for Electrical Applications?
Pure copper materials for electrical applications deliver maximum conductivity performance, while brass alloys are optimized for machining and mechanical strength.
Superior Electrical Conductivity
Pure copper achieves 101% IACS conductivity compared to brass at only 28-37% IACS. Critical for electrical applications where power loss must be minimized.
Exceptional Thermal Performance
Pure copper's 390 W/m·K thermal conductivity far exceeds brass (109-121 W/m·K), making it ideal for heat dissipation applications.
Pure Copper vs Brass: Key Differences
| Property | Pure Copper | Brass | Best For |
|---|---|---|---|
| Electrical Conductivity | 101% IACS | 28-37% IACS | Pure Copper |
| Thermal Conductivity | 390 W/m·K | 109-121 W/m·K | Pure Copper |
| Machinability | Good (soft) | Excellent | Brass |
| Corrosion Resistance | Excellent | Good | Pure Copper |
| Primary Applications | Electrical, Thermal | Mechanical, Decorative | Application Dependent |
Technical Specifications: C11000 & C10200 Grades
Detailed technical data for our most popular pure copper materials for electrical applications, including thermal and electrical performance characteristics.
Pure Copper Technical Data Sheet
| Property | C11000 (ETP) | C10200 (OF) | Unit | Test Standard |
|---|---|---|---|---|
| Copper Content | ≥99.90% | ≥99.95% | % | ASTM B152 |
| Electrical Conductivity | 101% IACS | 103% IACS | % IACS | ASTM B193 |
| Thermal Conductivity | 390 | 398 | W/m·K | ASTM E1461 |
| Density | 8.89 | 8.94 | g/cm³ | ASTM B311 |
| Melting Point | 1083 | 1083 | °C | - |
| Tensile Strength (Annealed) | 220 | 205 | MPa | ASTM B152 |
| Elongation (Annealed) | 45 | 50 | % | ASTM B152 |
| Coefficient of Expansion | 17.7 | 17.7 | ×10⁻⁶/°C | ASTM E228 |
C11000 (ETP) - Electrolytic Tough Pitch
C10200 (OF) - Oxygen-Free
Maximum Conductivity
101-103% IACS electrical conductivity for minimal power loss in electrical applications
Superior Heat Transfer
390-398 W/m·K thermal conductivity for efficient heat dissipation solutions
Certified Quality
ASTM compliant materials with full MTC documentation for traceability
Have Questions About Our Materials?
Our technical team is ready to help you select the right copper grade for your application. with material selection guidance and specification support.
Pure Copper Materials for Electrical Applications
High-conductivity pure copper from YCSmachining is the preferred choice for critical electrical applications requiring maximum performance.

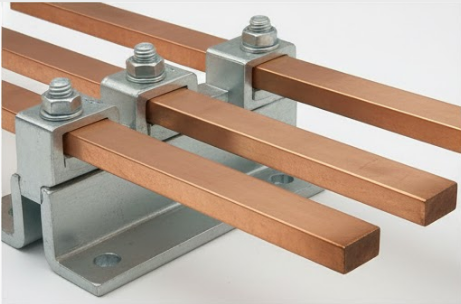

Base Materials for Busbars
High-current electrical distribution systems requiring maximum conductivity and minimal power loss.
Materials for Transformer Windings
Electrical transformers and inductors where efficiency and heat management are paramount.
Materials for Heat Sinks & Thermal Management
Electronic cooling solutions leveraging pure copper's exceptional thermal conductivity.
Materials for Electrical Connectors
High-performance electrical connections where conductivity and corrosion resistance matter.

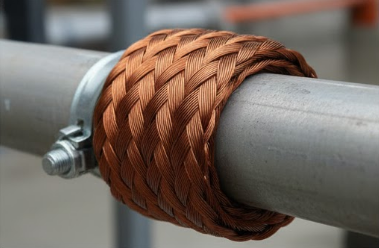

Materials for Grounding Systems
Electrical safety grounding where reliable conductivity is critical for protection.
Materials for Heat Exchangers
Thermal transfer systems in electronics, HVAC, and industrial cooling applications.
Quality Assurance & Material Traceability
Every pure copper shipment includes comprehensive quality documentation ensuring full traceability and compliance with electrical industry standards.
ASTM Compliance
B152, B193, E1461 certified
Mill Test Certificate
Complete chemical & physical analysis
Conductivity Testing
Verified electrical performance data
Batch Traceability
Complete supply chain tracking
Available Forms & Sizes
Pure copper materials available in multiple forms, all optimized for electrical applications with annealed or hard temper options.
Copper Bars & Rods
Round, square, hexagonal copper bars for electrical busbars and conductors
Copper Plates & Sheets
Flat copper sheets for heat sinks and electrical panels
Copper Tubes
Round and square tubes for heat exchangers and thermal applications
Custom Profiles
Precision-cut copper components ready for electrical assembly
5,000+ tons ready stock • CNC precision machining • 5-7 days sample lead time
Pure Copper Materials FAQ
Common questions about pure copper materials for electrical applications and our services.
Why is pure copper better than brass for electrical applications?
Pure copper offers 101% IACS electrical conductivity compared to brass at only 28-37% IACS. For electrical applications, this means significantly lower power loss, reduced heat generation, and improved system efficiency. Brass is optimized for machining, while pure copper is engineered for maximum electrical performance.
What's the difference between C11000 and C10200 copper grades?
C11000 (ETP - Electrolytic Tough Pitch) contains ≥99.90% copper with 101% IACS conductivity. C10200 (OF - Oxygen-Free) contains ≥99.95% copper with 103% IACS conductivity and better high-temperature performance. C10200 is preferred for critical electrical applications requiring maximum conductivity and thermal performance.
Do you provide material traceability for electrical applications?
Yes. Every pure copper shipment includes complete Mill Test Certificates (MTC) with verified electrical conductivity testing, chemical composition analysis, and mechanical properties. We provide full batch traceability documentation to ensure compliance with electrical industry standards and quality requirements.
Can pure copper be CNC machined for electrical components?
Yes. While pure copper is softer than brass, it can be precision CNC machined with proper tooling and parameters. Our engineers optimize cutting speeds, tool geometry, and workholding to prevent deformation and achieve tight tolerances for electrical components like busbars, connectors, and heat sinks.
What is your lead time for pure copper materials?
Stock pure copper materials can be shipped same-day from our 5,000+ ton inventory. Custom machined electrical components typically require 5-7 days for samples, with production lead times based on quantity and complexity. We provide accurate delivery schedules with every quotation to support your project timeline.
