Precision-Engineered Components for Next-Generation Automation
Advanced aluminum alloy solutions delivering exceptional strength-to-weight ratios and dimensional stability. Trusted by leading automation manufacturers for mission-critical applications requiring precision, durability, and performance consistency.
Eliminating Hidden Costs in Automation
YCS addresses the critical challenges that drive up total cost of ownership in robotic systems through engineered material solutions and precision manufacturing.
Challenge: Inertial Response Lag
Heavy steel components create excessive inertia, limiting acceleration and reducing system responsiveness in high-speed automation applications.
7075-T651 aluminum alloy with optimized thin-wall machining reduces component weight by 30%+ while maintaining structural integrity. Advanced wall thickness optimization maintains strength where needed.
Challenge: Tolerance Drift
Continuous vibration and thermal cycling cause dimensional instability in precision positioning systems, leading to cumulative tolerance failures.
T651 pre-stretch stress relief process ensures large aluminum base plates maintain flatness within ±0.02mm even after extensive CNC machining and high-frequency operation.
Challenge: Joint Wear & Noise
Mechanical wear at joint connections generates noise, particle contamination, and requires frequent maintenance in clean room environments.
HRC 60+ hard anodizing creates a ceramic-like surface layer with reduced friction coefficient and exceptional wear resistance. Specialized smooth finishing reduces operational noise.
Lightweight Structural Excellence
High-strength 7075-T651 and 6061-T6 aluminum alloys engineered for structural applications demanding superior performance with minimal weight penalty.
Why T651 Temper Matters for CNC Applications
T651 stress-relief treatment ensures exceptional dimensional stability during extensive CNC machining operations. After heavy material removal, plates maintain flatness within ±0.05mm tolerance - critical for precision guide rail mounting and multi-axis positioning systems.
Durability for High-Cycle Applications
Engineered for continuous operation in demanding automation environments. Advanced surface treatments and material selection ensure reliable performance through millions of operational cycles.
Hard Anodizing for Wear Resistance
Type III hard anodizing transforms aluminum surfaces to achieve HRC 60+ hardness with coating thickness up to 125μm. This process creates a wear-resistant ceramic-like layer ideal for sliding surfaces, bearing races, and high-contact automation components.
Specialized Solutions by Robot Type
Each robotics application demands unique material properties and manufacturing approaches. Our expertise spans the full spectrum of automation technologies.
Collaborative Robots
Premium surface finishing and safety-optimized rounded edges for human-robot interaction environments.
Industrial Arms
Heavy-duty 7075 aluminum components designed for maximum payload capacity and structural rigidity.
Mobile Robots (AGV/AMR)
Impact-resistant chassis and battery enclosures with integrated thermal management features.
End-Effectors
Ultra-precise machining with integrated mounting features and optimized geometry for specialized tooling.
Design for Manufacturing Optimization
Real engineering collaboration that reduced weight by 40%, eliminated assembly time by 100%, and achieved zero cumulative tolerance risk.
Original Design
- • Three separate steel components requiring welding
- • Complex assembly with 12+ fasteners
- • Cumulative tolerance stack-up issues
- • Total weight: 8.5kg per unit
YCS Optimized Solution
- • Single 7075-T651 aluminum component
- • Direct bolt-on installation, no assembly
- • Zero tolerance accumulation
- • Final weight: 5.1kg per unit (-40%)
Engineering Collaboration Process
Precision in Motion: Real-World Applications

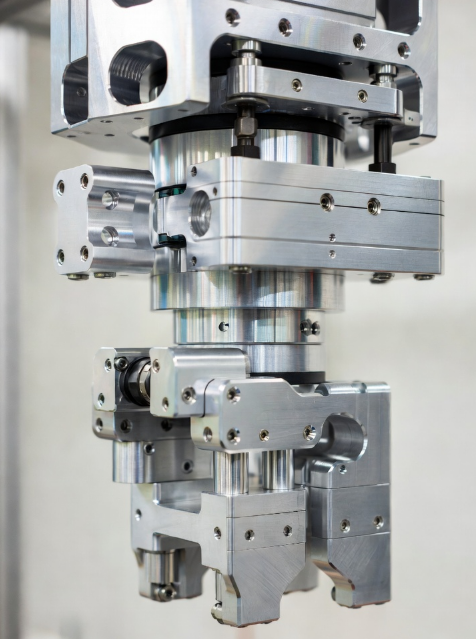

Robotic End-Effectors & Joints
Precision-machined aluminum components for robotic arms and end-effectors. Optimized geometry reduces inertial loads while maintaining structural integrity under dynamic loading conditions.

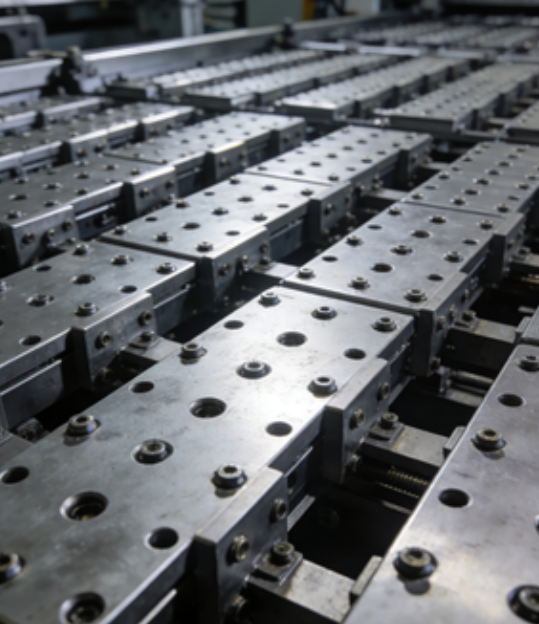

Automation Line Frameworks
Multi-station automation frames featuring hundreds of precisely positioned mounting points. T651 stress relief ensures dimensional stability throughout extensive machining operations.
Material Specifications for Automation Applications
| Alloy | Temper | Yield Strength | Density | Applications |
|---|---|---|---|---|
| 7075 | T651 | 503 MPa | 2.81 g/cm³ | High-stress structural components, precision fixtures |
| 6061 | T6 | 276 MPa | 2.70 g/cm³ | General structural, automation frames, brackets |
| 6082 | T6 | 310 MPa | 2.70 g/cm³ | Medium-strength applications, machine components |
Automation-Grade Quality Assurance
Specialized testing protocols ensuring consistent performance in high-precision automation environments with full traceability and certification.
Dynamic Balancing
Precision balancing for all rotating components using advanced multi-plane dynamic balancing equipment to eliminate vibration and ensure smooth operation.
CMM Dimensional Reports
Complete coordinate measuring machine inspection for automation base plates and multi-hole positioning fixtures with detailed position tolerance verification.
Material Traceability
Complete chemical composition analysis and material certification for every batch, ensuring consistent mechanical properties across production runs.
Sample CMM Inspection Report
Automation Base Plate - 500mm × 300mm
All 24 mounting holes verified within ±0.005mm position tolerance. Surface flatness exceeds specification requirements by 65%. Component approved for automation line integration.
Explore Materials & Specifications
Deep-dive into our high-performance aluminum alloy inventory with detailed technical data sheets and availability status.
Advanced Manufacturing Services
Discover our precision machining and surface treatment capabilities designed for automation industry requirements.
Ready to Optimize Your Automation Systems?
Partner with our engineering team to develop custom aluminum solutions that reduce weight, improve performance, and accelerate your automation projects.
